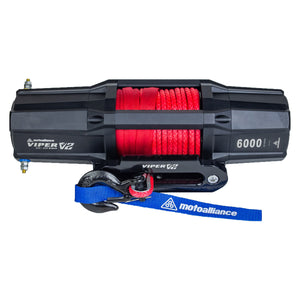

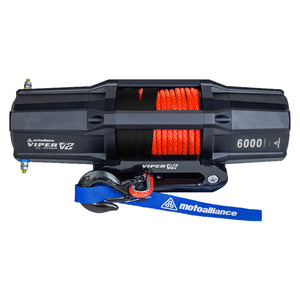

Viper V2 UTV Widespool Winch - a NEW GENERATION OF VIPER!
NEW FOR 2022.
Introducing the newest line of Viper Winches, The Viper V2
Viper V2 Wide Spool UTV Winch - a NEW GENERATION OF VIPER!
High IP-67 Waterproof rating
Improved design, including black primary wiring for a sleek look.
Upgraded wireless remote with 150' range.

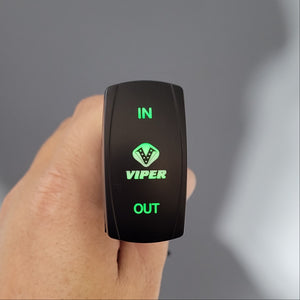

New lighted flush mount rocker switch.
60' of AmSteel blue Synthetic Rope.
The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

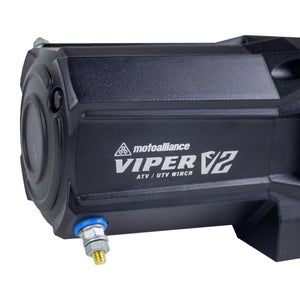

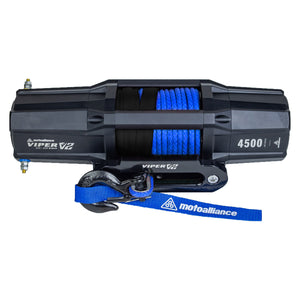

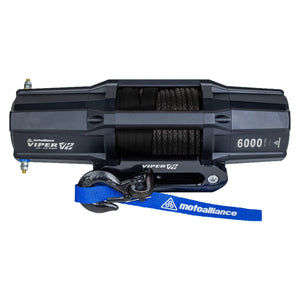

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out stainless-steel hook to the “stealth” wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope.
The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits. winch.
IP67 Waterproof Rating
Wireless Remote System with unique frequency
Flush Mount Dash Switch
Planetary metal gear train and permanent magnet motor
″Whisper″ quiet greasing system
Limited Lifetime Warranty (winch) / Rope (1 year)

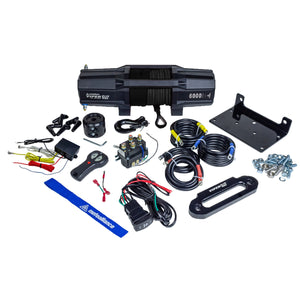

60′ x ¼″ diameterAmSteel®-BlueSynthetic Cable (1 year warranty)

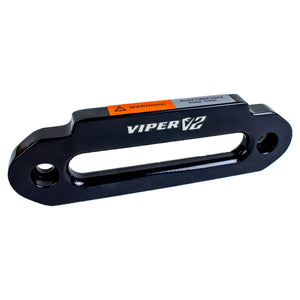

Aluminum Hawse Fairlead

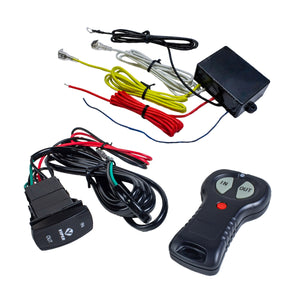

Wireless Remote Switch
Flush Mount Dash Switch
Contactor & Wiring

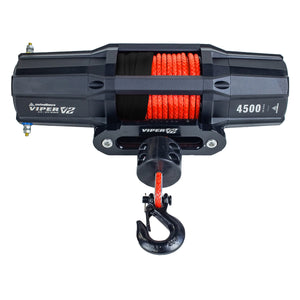

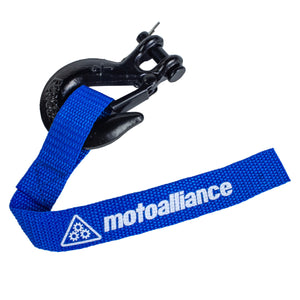

Black Clevis Hook

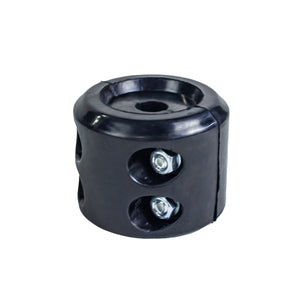

Rubber Line Stopper (two-piece)
Hand Saver Strap
Installation Hardware and Instructions
Cable - AmSteel®-Blue Synthetic, 8,600lb max load rating
Motor - 12V DC, Sealed permanent magnet.
Clockable power post by 90d.
Gearing / Gear Ratio - 3-Stage planetary/136:
Brake - Automatic, 100% load holding

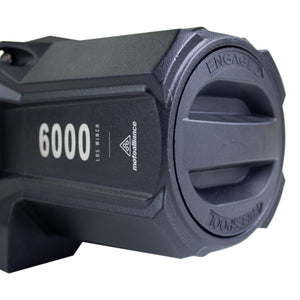

Clutch - Sliding Ring Gear
Wiring - 6 gauge (English)
Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
Dimensions: 16.25 (L) x 4.75 (H) x 4.75 (D) inches, 20.8 lbs
NOTE: Pioneer 1000 with factory bumper will require the winch to be clocked.
Shipping to HI, AK, and International will not be calculated correctly at checkout. Please contact us for shipping info and restrictions.
Very impressed with the new Viper V2. Extremely strong winch in a small and relatively light package.
Viper V2 wides pool is an excellent winch
I had to modify the 700 mounting bracket so the winch could be mounted so that the rope would not rub the body of the winch and so that the motor wire connections did not contact the plate mounting bolts. It turned out very nice and I love the winch. Very quiet.
Over all pretty good
The 6,000 lb winch is all pioneer 1000-5 wanted far as space for mounting the U bolts little long had to trim them down a little. Looks awesome and work's great in new condition also really like the wireless remote definitely worth the extra money. I did put in notes that I wanted a blue back lit rocker switch but they sent a green one anyway but guess works out great in dark so it's not mistaken for a light or something. I would recommend to anyone I'm happy with product.
