DIY Backup Light Harness for Honda Pioneer 1000 and Pioneer 700[2017+]

Size

DIY Backup light harness for Honda Pioneer 1000 and Pioneer 700 [years 2017+].
Great for small LED lights, cubes, or rock lights.
Wire up your light and plug it in and you are done!
Automatically comes on whenever the SxS is in reverse.

Available in following lengths for your custom needs.

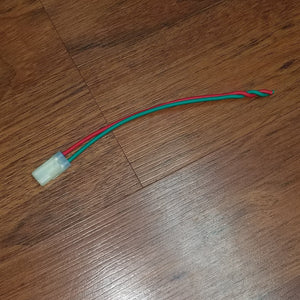

  • 6-inch pigtail.
    Useful for building your own complete backup light.

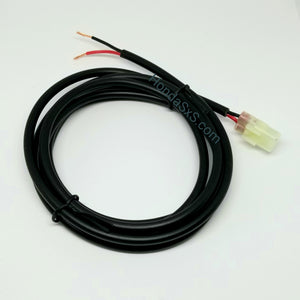

Product update. The 5 and 9 foot leads are changing to a 2 core automotive style wire. JAN 27, 2020

Images will be updated soon.

  • 5ft lead.

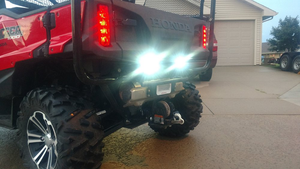

    Enough to reach from the source to the rear of the bump bed. Great for a lower backup light.
  • 9ft lead.

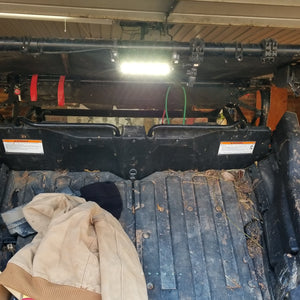

    Enough to reach from the source to the top rear of the ROPS on both P3/P5. Great for a high mounted backup light.

Fits

  • Honda Pioneer 1000 All years and models.
  • Honda Pioneer 700, 2017+ years all models.

Wire Identification.

  • Red is Key-On 12v Positive.
  • Green (or black) is the ground reverse trigger.

What size lights can I use?
The OEM circuit is capable of handling most small to medium LED lights, cubes, or rock lights. A pair of LED cubes or a 10" LED light bar is no issue for this circuit assuming evenly split on the front end ACC socket. No more than an 8 amp.100w light.

    AMP Rating:
    Max recommended load is 8 amps. The combined and split between the backup alarm port and accessory ACC port has a max of 15 amps.
