Sold out

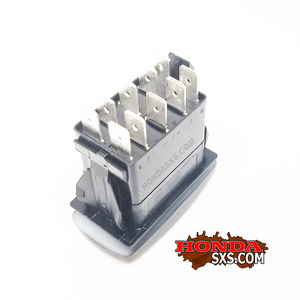

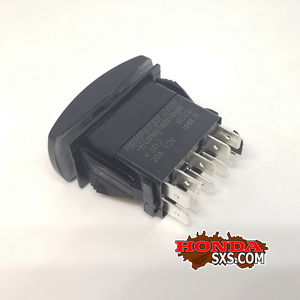

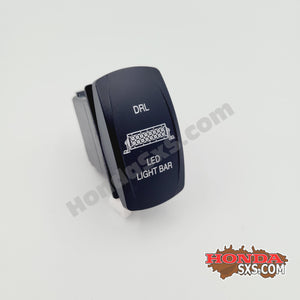

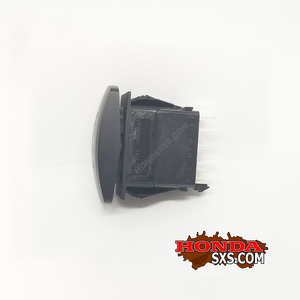

DRL and LED Rocker Switch, DPDT, ON/OFF/ON.
Part#: DPDT-5004-DRL
$27.00
- DPDT ON/OFF/ON switch.
- OTR Carling V-Series
- This is a maintained ON/OFF/ON switch, not momentary.
- Two independently wired LEDs
- Rated 20A 12V
- No rear barriers between terminals.
- Insulated 1/4" female quick disconnect terminals can be used.
- This is a 10-terminal switch.
O-Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris. Certified to IP68 for front panel components of the actual switch only.
The switch mounting hole - .830 by 1.45 inches.
*wiring NOT included and ONLY shown for a real-world example!
If you need a key-on power source, see our item here --> KEY-ON Power Harness.
Switch housing block and pins here --> 10 Pin Housing Block
