HARN-0017-HBP1K16

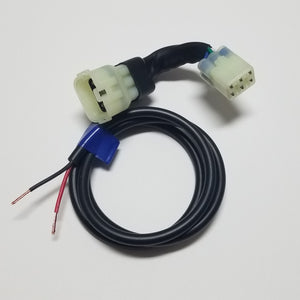

DIY High Beam Trigger Wire Harness for Pioneer 1000 - All years

  • Plug-N-Play wire harness for easy installation.
  • Hookup a Small to Medium LED light bar with ease
  • 2ft lead allows easy wiring to the accessory.
  • An easy fix for the dim factor headlights by installing an extra high beam light bar.
  • Plug-n-play install. No modification to the stock wires at all.
  • Save a switch by using the OEM hi/low switch as the switch.
  • Can handle 2-4 amps range with OEM LED lights.

This kit is a DIY (do it yourself) kit. It is simple to install and can be done it a matter of minutes. Simply plug the connector into the factory harness and wire up your light to the + and - on the 2ft lead. To activate the light simply turn your high beams on.

Recommend amp usage is 2-4 amps without a relay system. Max amps tested was a 20 inch, 6 amp light bar with factory LED headlights. For larger light bars, you must use a relay.

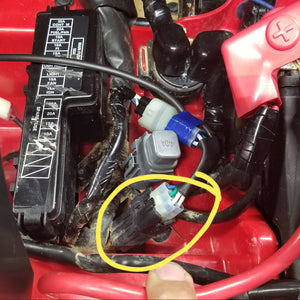

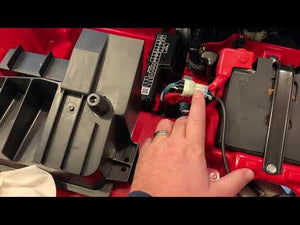

This is a DIY kit. No instructions will be included. See images for plug location.

The harness is hand made in house by 2FarOffRoad LLC.
Custom kits and lengths including a relay setup can be made upon request.

FITS:
2016-2023 Pioneer 1000 - 3/5/6



Customer Reviews

Based on 17 reviews
88%
(15)
12%
(2)
0%
(0)
0%
(0)
0%
(0)
A
Adam E.
DIY high beam trigger wire harness pioneer 1000 5

Very easy to install, amazing quality highly recommend works great thanks!

R
Robert R.
Works great and super easy to install

I installed this on my Pioneer 1000-6 using a 12” light bar that my son gave me. Super simple installation onto the front bumper above the cut out for the winch plate. The wire harness hookup works perfectly. A really nice addition.

J
John G.M.
High Beam Trigger

The High Beam trigger for the Honda Pioneer 1000 was super easy to install. It simply plugged in. The hardest part was unplugging the factory connection. I used it to install two 3.5 inch cube lights on the lower corners of the roll cage. Super simple.

J
Joe M.
High Beam Harness

Great quality, fast shipping. Highly recommend!

D
Danny S.
High beam triggered harness

This plug and play harness works great to feed power to my LED light bar up front
