Switch harness for Factory On/Off switch for 2022+ Pioneer 1000's

Size
Pack

The 2022 Pioneer 1000 Deluxe and Trail model include On/Off switches that has no immediate use. The Deluxe has 3 unused switches, the Trial has 1 unused switch.

Here we provide wiring with the proper connector to utilize those switches.

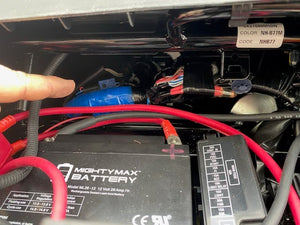

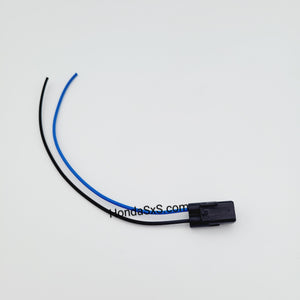

Our kit includes a 2 pin connector to replace the dummy plug. This is the dummy plug that has the white wire loop on it.

Black wire needs a fused power supply.
Blue wire is OUT to your chosen accessory.

This can be used to control small draw item on your Pioneer or to control a relay such as a stinger. Honda says the switch is recommend for a max of 3 amps throughput.
