Pioneer 1000, accessory switch wire harness conversion kit.
Part#: HARN-0003

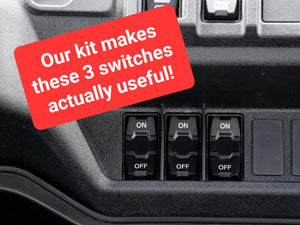

New Product transitions the factory switches found in the new 2022+ Pioneer 1000 deluxe models to work as expected.

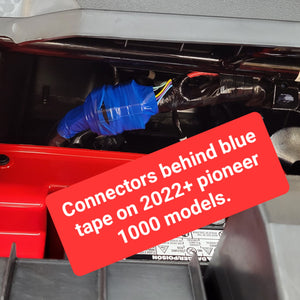

From the factory, these switches are dead, unconnected, and lacking. Honda provides no power or accessories to connect to these. They do NOT rely on or connect to the factory fuse box in any manner. Ultimately, they are useless as is. Even many dealers cant figure out how they work.
OUR SOLUTION!

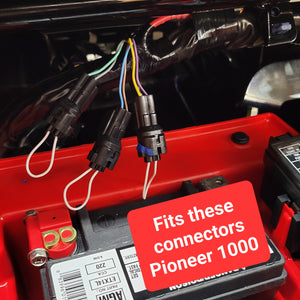

Our kit converts these 3 connections to make them function as most expect they should.

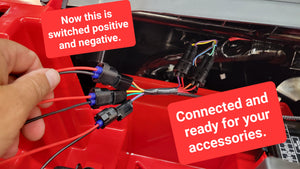

After installation and proper power hookup, you can then just wire up your accessories directly to the included pigtails.
Keyed power on a 10a fuse is recommended. Such as to a secondary fuse box.
Constant power can be used but is not recommended.
The factory ACC connector can be used; however is not recommended for such loads.
SEVERAL OPTIONS TO PICK FROM.

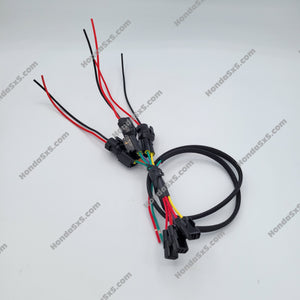

- Harness + 6" Pigtails.
- Harness + 3ft Pigtails.
** CONNECTION OPTIONS ** - Blank ends are to be installed into your own fuse box.

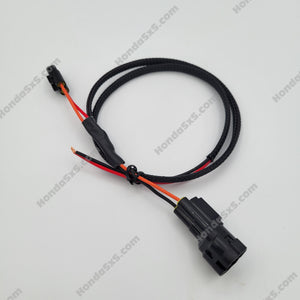

- Inline fuse if you wish for direct constant power.

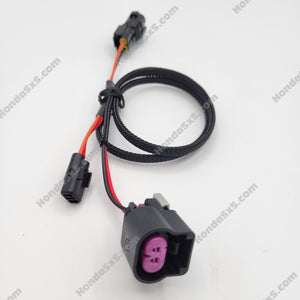

- GT connector. This is if you installed the 2022 Honda add-on fuse box.
- ACC key-on connector to hook to the port above the primary battery.
FITS:
Pioneer 1000-3, Deluxe 2022-2024
Pioneer 1000-5, Deluxe 2022-2024
Pioneer 1000-6 Deluxe 2023-2025
Starting 2025, Honda has removed these switches from some models.
Some models may still be wired for them, but the switches are not provided.
WARNINGS and NOTES:
* DO NOT REUSE THE WHITE LOOPS. Installing these will short the circuit.
* The Honda Service manual says each switch is limited to a 3 amp max load.
* This DOES NOT directly fit the switch's standalone.
Trail models with a single switch are now available.
Trail model link ---> coming soon.
