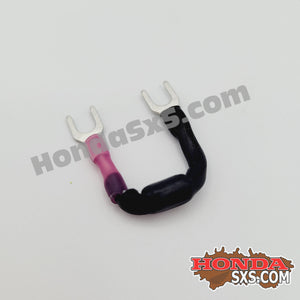

TVS FlyBack Protection - Transient Voltage Suppression Diode
Part#: TVS-protect-1
Designed to protect the control switch and other electronics from field collapse spikes related to Stinger, Cole Hersee, and other high-amp solenoid relays.
THE PROBLEM....
There have been many reports of users blowing out switch LED's and Tail Lights once a Stinger or Cole Hersee relay is installed. The relay will throw a high amp reverse polarity when switched off, this causes the LEDs to blow. To prevent this we have installed this TVS diode between the positive and negative control post of the relay.
More info: https://hondasxs.com/threads/flyback-diodes-and-blown-out-rocker-switches.32473/
TO INSTALL:

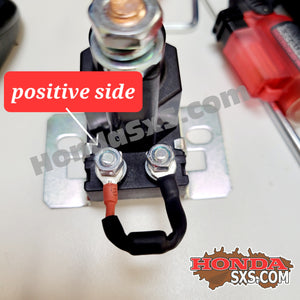

The red fork should be installed on the positive wire side.
The black fork to the negative wire side.

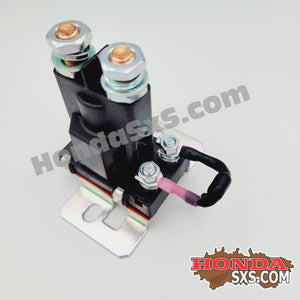

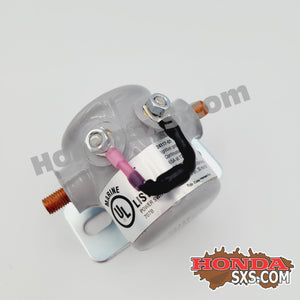

*Relay, Stinger, Cole Hersee; NOT INCLUDED. shown as examples only.
