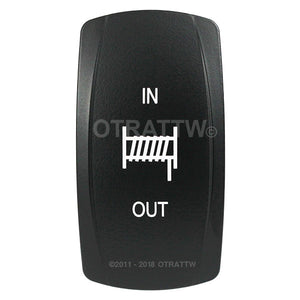

Prewired Winch In/Out switch designed for the Honda Pioneer 1000,700,500 and Honda Talon 1000 R/X/X4/R4 and other units.
*Standard and Premium kits are not interchangeable as harnesses are different.

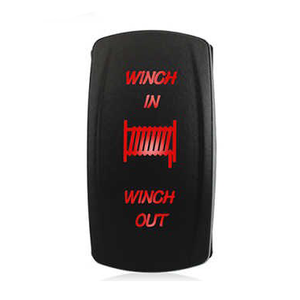

Standard: Red, Blue, Green, Orange, White

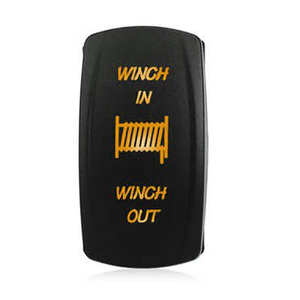

Premium: Red, Blue, Green, Amber, White
*Custom wiring arrangements available upon request.
Collections: ALL ITEMS, Electrical, Pioneer 1000, Pioneer 500, Pioneer 700, Talon 1000 R/X, winches
Works as designed no cutting wires just hook up to wires like plug and play
This is a simple install, there are only 4 wires to connect - one goes to key on switched 12 volt, one to ground and two to the winch contactor. The two going to the contactor are black and green and they match the end two black and green on the contactor (of 3 on the contactor. The middle (brown or tan) wire isn't involved. Double tap spade connectors are included in the kit, so that part is plug and play. I'm CID on Hondasxs.com and will be glad to answer any questions you might have.
Easy install, just had to reverse color on connections for proper winch direction.
The Honda SXS Club sent me their pre-wired premium switch in the same color as my other switches to control my new Viper winch. Bottom line the switch and harness are first class, directions were simple, and it works flawlessly. Great product at a very reasonable price. Customer support was excellent as always. AWESOME!
This was a perfect addition to the remote. It almost took longer to unpack than install.
