SPDT-WNCH-6001

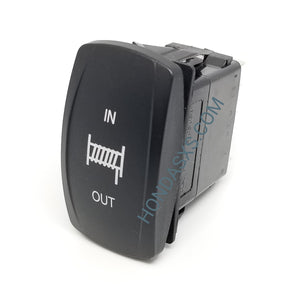

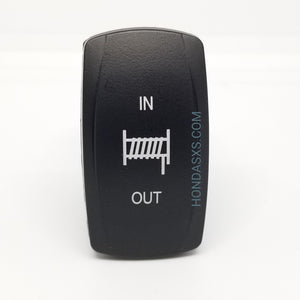

Winch In/Out Rocker Switch, SPDT, ON/OFF/ON.

  • SPDT momentary ON/OFF/ON momentary switch.
  • Two independently wired LEDs
  • OTR Carling V-Series
  • Rated 20A 12V
  • Insulated 1/4" female quick disconnect terminals can be used.

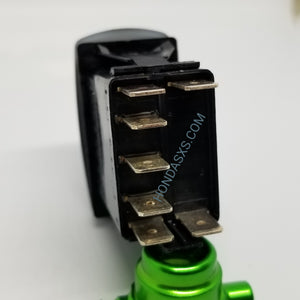

  • This is a 7 terminal switch.
  • No rear barriers between terminals.

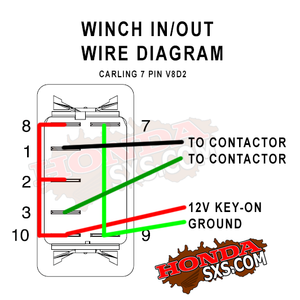

  • Wire Diagram

Rings installed on the LED and/or the incandescent lights and the center shaft to seal out water, dust, and debris.  Certified to IP68 for front panel components of the actual switch only.  Sealed switch with optional panel gasket (VPS-CAR) will meet IP67 rating.

Switch mounting hole is .830 by 1.45 inches.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
BRETT HALDERSON
Perfect Switch

The switch was easy to wire up using 1/4" connectors. I was able to slip it into the panel opening with no problems. It lights up and looks original. It works as it should.

J
James shoemaker
Switch

So far everything I bought from the Honda has **** club has fit and worked fine good people to deal with

P
Paul N.
It’s Red, and it Works

I swapped this switch onto a pre wired SATV Black Ops Winch harness. The wiring diagram provided was helpful in getting the right connections. Fits great, works great, red light color matches the rest of my switches
